機櫃
]]> https://www.radistar.com.tw/en/case/%e6%a9%9f%e6%ab%83/feed/ 0 取物櫃 https://www.radistar.com.tw/en/case/%e5%8f%96%e7%89%a9%e6%ab%83/ https://www.radistar.com.tw/en/case/%e5%8f%96%e7%89%a9%e6%ab%83/#respond Sun, 18 May 2025 14:30:21 +0000 https://www.radistar.com.tw/%e6%9c%aa%e5%88%86%e9%a1%9e/%e5%8f%96%e7%89%a9%e6%ab%83/
取物櫃
]]> https://www.radistar.com.tw/en/case/%e5%8f%96%e7%89%a9%e6%ab%83/feed/ 0 醫療手推車 https://www.radistar.com.tw/en/case/%e9%86%ab%e7%99%82%e6%89%8b%e6%8e%a8%e8%bb%8a/ https://www.radistar.com.tw/en/case/%e9%86%ab%e7%99%82%e6%89%8b%e6%8e%a8%e8%bb%8a/#respond Sun, 18 May 2025 14:29:03 +0000 https://www.radistar.com.tw/%e6%9c%aa%e5%88%86%e9%a1%9e/%e9%86%ab%e7%99%82%e6%89%8b%e6%8e%a8%e8%bb%8a/
醫療手推車
]]> https://www.radistar.com.tw/en/case/%e9%86%ab%e7%99%82%e6%89%8b%e6%8e%a8%e8%bb%8a/feed/ 0 OCP RACK https://www.radistar.com.tw/en/case/ocp-rack/ https://www.radistar.com.tw/en/case/ocp-rack/#respond Sun, 18 May 2025 14:28:10 +0000 https://www.radistar.com.tw/%e6%9c%aa%e5%88%86%e9%a1%9e/ocp-rack/
OCP RACK
]]> https://www.radistar.com.tw/en/case/ocp-rack/feed/ 0 RA1機櫃訂製 https://www.radistar.com.tw/en/case/ra1%e6%a9%9f%e6%ab%83%e8%a8%82%e8%a3%bd/ https://www.radistar.com.tw/en/case/ra1%e6%a9%9f%e6%ab%83%e8%a8%82%e8%a3%bd/#respond Mon, 30 Oct 2023 11:05:21 +0000 https://www.radistar.com.tw/?p=2242
RA1-1RA1-3
RA1-2RA1-4
]]> https://www.radistar.com.tw/en/case/ra1%e6%a9%9f%e6%ab%83%e8%a8%82%e8%a3%bd/feed/ 0 RF機箱訂製 https://www.radistar.com.tw/en/case/rf%e6%a9%9f%e7%ae%b1%e8%a8%82%e8%a3%bd/ https://www.radistar.com.tw/en/case/rf%e6%a9%9f%e7%ae%b1%e8%a8%82%e8%a3%bd/#respond Mon, 30 Oct 2023 11:02:35 +0000 https://www.radistar.com.tw/?p=2247

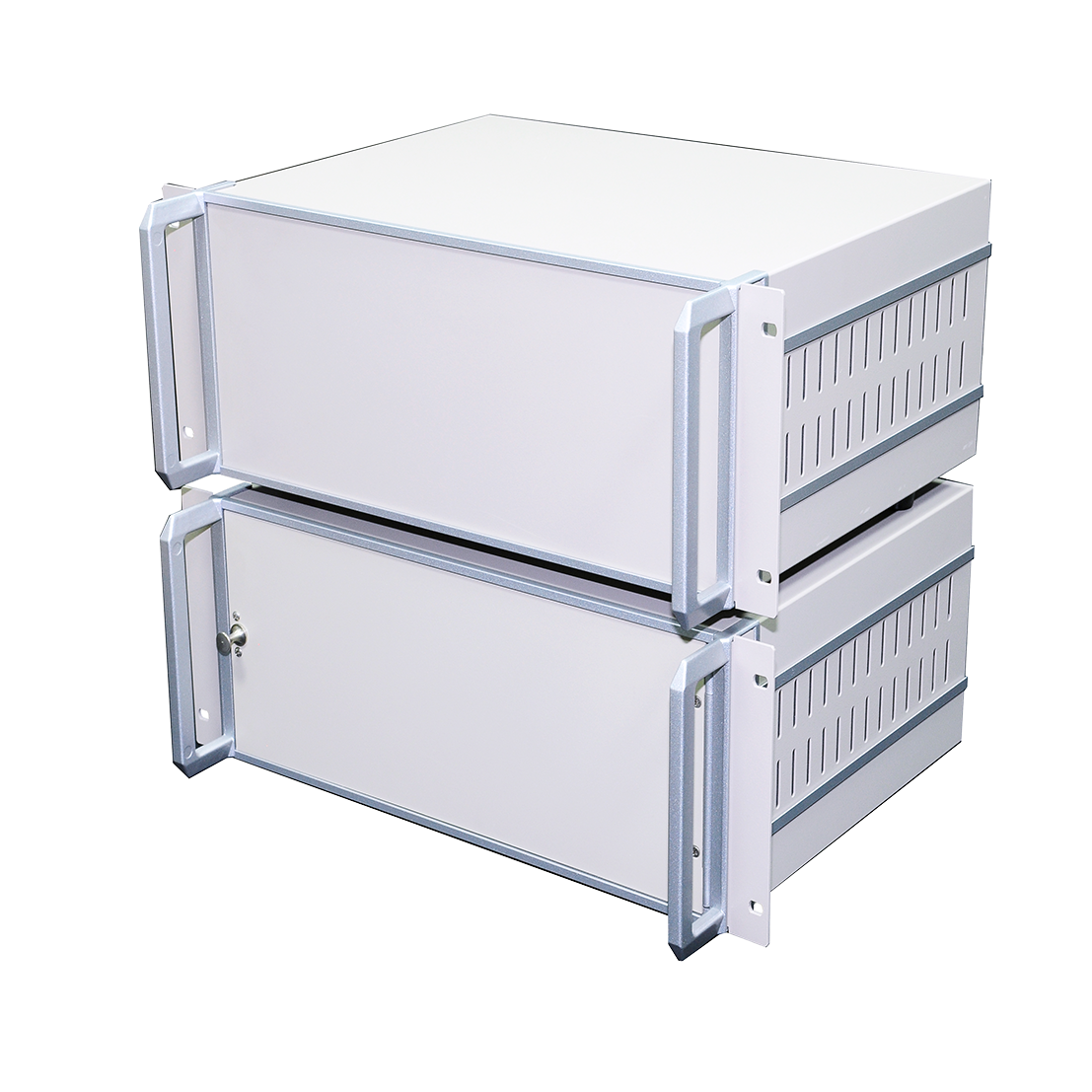

RF固定_開啟式推疊RF-2
RF-1RF-3
]]> https://www.radistar.com.tw/en/case/rf%e6%a9%9f%e7%ae%b1%e8%a8%82%e8%a3%bd/feed/ 0 RS機箱訂製 https://www.radistar.com.tw/en/case/rs%e6%a9%9f%e7%ae%b1%e8%a8%82%e8%a3%bd/ https://www.radistar.com.tw/en/case/rs%e6%a9%9f%e7%ae%b1%e8%a8%82%e8%a3%bd/#respond Mon, 30 Oct 2023 10:59:17 +0000 https://www.radistar.com.tw/?p=2249

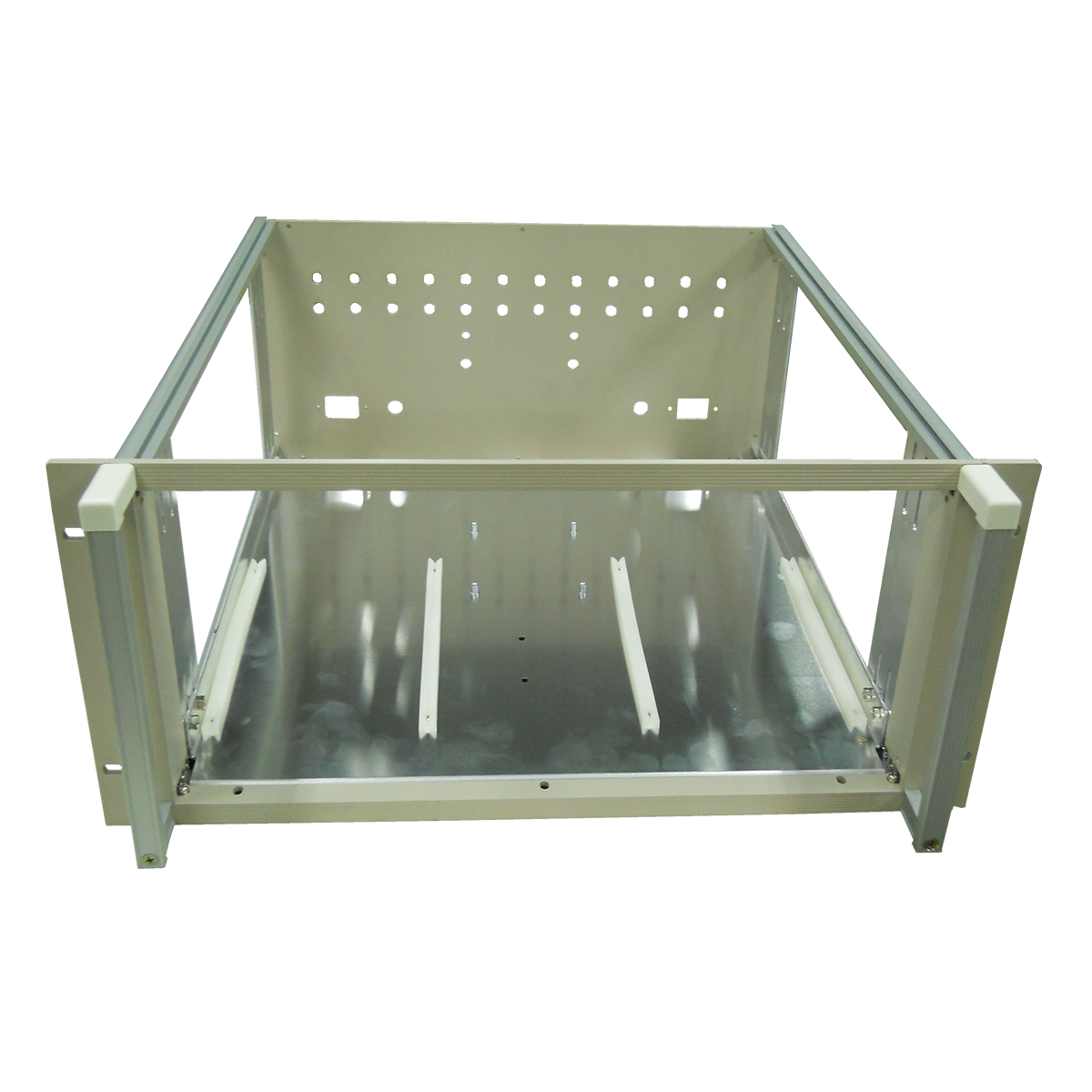

RS堆疊RS-2
RS-1RS-3
]]> https://www.radistar.com.tw/en/case/rs%e6%a9%9f%e7%ae%b1%e8%a8%82%e8%a3%bd/feed/ 0 訂製機架 https://www.radistar.com.tw/en/case/%e8%a8%82%e8%a3%bd%e6%a9%9f%e6%9e%b6/ https://www.radistar.com.tw/en/case/%e8%a8%82%e8%a3%bd%e6%a9%9f%e6%9e%b6/#respond Mon, 30 Oct 2023 10:56:22 +0000 https://www.radistar.com.tw/?p=2253
訂製機架-1訂製機架-3訂製機架-5訂製機架-7
訂製機架-2訂製機架-4訂製機架-6訂製機架-8
]]> https://www.radistar.com.tw/en/case/%e8%a8%82%e8%a3%bd%e6%a9%9f%e6%9e%b6/feed/ 0 移動式手推車 https://www.radistar.com.tw/en/case/%e7%a7%bb%e5%8b%95%e5%bc%8f%e6%89%8b%e6%8e%a8%e8%bb%8a-2/ https://www.radistar.com.tw/en/case/%e7%a7%bb%e5%8b%95%e5%bc%8f%e6%89%8b%e6%8e%a8%e8%bb%8a-2/#respond Mon, 30 Oct 2023 10:46:01 +0000 https://www.radistar.com.tw/?p=2256
移動式手推車-1移動式手推車-3
移動式手推車-2
]]> https://www.radistar.com.tw/en/case/%e7%a7%bb%e5%8b%95%e5%bc%8f%e6%89%8b%e6%8e%a8%e8%bb%8a-2/feed/ 0 特殊機箱訂製 https://www.radistar.com.tw/en/case/%e7%89%b9%e6%ae%8a%e6%a9%9f%e7%ae%b1%e8%a8%82%e8%a3%bd/ https://www.radistar.com.tw/en/case/%e7%89%b9%e6%ae%8a%e6%a9%9f%e7%ae%b1%e8%a8%82%e8%a3%bd/#respond Mon, 30 Oct 2023 10:37:40 +0000 https://www.radistar.com.tw/?p=2258
機箱-6機箱-3機箱-1
機箱-4機箱-2
]]> https://www.radistar.com.tw/en/case/%e7%89%b9%e6%ae%8a%e6%a9%9f%e7%ae%b1%e8%a8%82%e8%a3%bd/feed/ 0 RAE https://www.radistar.com.tw/en/products/rae/ https://www.radistar.com.tw/en/products/rae/#respond Thu, 19 Oct 2023 03:31:03 +0000 https://www.radistar.com.tw/?p=1672

PARTS LIST

RAE爆炸圖
ITEM NO DESCRIPTION QTY
1 Welded Frame 1
2 Top Cover 1
3 Bottom Plate 1
4 Side Panels 2
5 Solid Steel Front Door 1
6 Mounting Rails 4
7 Base Bottom 1
8 Rear Door 1
9 Portfolio Folder 1
10 3-fan Kits 1

Size Directions

RAE尺寸圖

Product Specifications

Product Code Dimensions
U H1 (mm) H0 (mm) W1 (mm) W0 (mm) D1 (mm) D0 (mm)
RAE-36U-800 36U 1600 1833 450 600 710 800
RAE-42U-800 42U 1867 2100 450 600 710 800

]]> https://www.radistar.com.tw/en/products/rae/feed/ 0 電視牆架 https://www.radistar.com.tw/en/products/%e9%9b%bb%e8%a6%96%e7%89%86%e6%9e%b6/ https://www.radistar.com.tw/en/products/%e9%9b%bb%e8%a6%96%e7%89%86%e6%9e%b6/#respond Thu, 19 Oct 2023 03:24:48 +0000 https://www.radistar.com.tw/?p=1667
product_04-00002

File Download

pdf-icon-2

電視牆架系列
型錄

]]> https://www.radistar.com.tw/en/products/%e9%9b%bb%e8%a6%96%e7%89%86%e6%9e%b6/feed/ 0 中央控制台 https://www.radistar.com.tw/en/products/%e4%b8%ad%e5%a4%ae%e6%8e%a7%e5%88%b6%e5%8f%b0/ https://www.radistar.com.tw/en/products/%e4%b8%ad%e5%a4%ae%e6%8e%a7%e5%88%b6%e5%8f%b0/#respond Thu, 19 Oct 2023 03:24:10 +0000 https://www.radistar.com.tw/?p=1665
product_04-0001product_04-0002

File Download

pdf-icon-2

中央控制台系列
型錄

]]> https://www.radistar.com.tw/en/products/%e4%b8%ad%e5%a4%ae%e6%8e%a7%e5%88%b6%e5%8f%b0/feed/ 0 電腦控制桌 https://www.radistar.com.tw/en/products/%e9%9b%bb%e8%85%a6%e6%8e%a7%e5%88%b6%e6%a1%8c/ https://www.radistar.com.tw/en/products/%e9%9b%bb%e8%85%a6%e6%8e%a7%e5%88%b6%e6%a1%8c/#respond Thu, 19 Oct 2023 03:23:44 +0000 https://www.radistar.com.tw/?p=1663
product_03-001

File Download

pdf-icon-2

電腦控制桌系列
型錄

]]> https://www.radistar.com.tw/en/products/%e9%9b%bb%e8%85%a6%e6%8e%a7%e5%88%b6%e6%a1%8c/feed/ 0 移動式手推車 https://www.radistar.com.tw/en/products/%e7%a7%bb%e5%8b%95%e5%bc%8f%e6%89%8b%e6%8e%a8%e8%bb%8a/ https://www.radistar.com.tw/en/products/%e7%a7%bb%e5%8b%95%e5%bc%8f%e6%89%8b%e6%8e%a8%e8%bb%8a/#respond Thu, 19 Oct 2023 03:22:33 +0000 https://www.radistar.com.tw/?p=1659

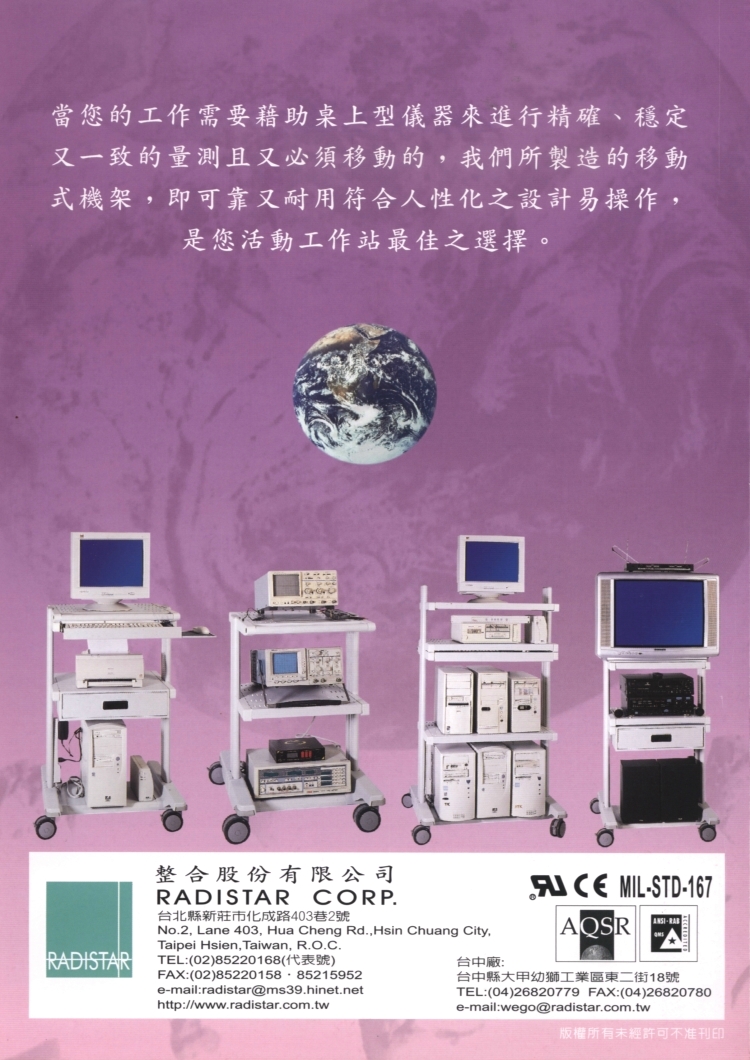

  • 活動工作站，具有廣泛、多變化之活動空間運用。

  • 適用於醫療科技、實驗設備、自動工業、測試系統、光電子學等。

mobilep1mobileP2mobileP3mobileP4mobileP5mobileP6

File Download

pdf-icon-2

移動式手推車系列
型錄

Optional accessories

手推車

手推車

把手固定平盤

把手固定平盤

固定平盤

固定平盤

抽拉式鍵盤台

抽拉式鍵盤台

抽屜附鎖

抽屜附鎖

電源組(3孔8只式)

電源組(3孔8只式)

]]> https://www.radistar.com.tw/en/products/%e7%a7%bb%e5%8b%95%e5%bc%8f%e6%89%8b%e6%8e%a8%e8%bb%8a/feed/ 0 RH https://www.radistar.com.tw/en/products/rh/ https://www.radistar.com.tw/en/products/rh/#respond Thu, 19 Oct 2023 03:21:37 +0000 https://www.radistar.com.tw/?p=1630
RH
Click to enlarge

Key Features:

  • With Fixed Front Panel
  • Suitable for Desk Top or Rack Mountable
  • Easy Assembly & Disassembly
  • Includes top, bottom, sides & handles.

File Download

pdf-icon-2

Instrument Cases RH Series

Materials

Aluminum

Finish

Rugged Black Coating

Applications Included

  • ISP/ ASP Web Server
  • E-mail, News or DNS Server
  • Internet Cache Server
  • Gateway Monitoring Unit
  • Test & Measurement Station


Standerd Accessories

  • Rackmounting Bracket
  • Fixed Front Panel
  • Rear Panel
  • Top Cover
  • Base PlateSide Vent Panels
  • Bottom Cover

PARTS LIST

RH
ITEM NO DESCRIPTION QTY
1 Rackmounting Bracket 1
2 Fixed Front Panel 1
3 Rear Panel 1
4 Top Cover 1
5 Base Plate 2
6 Side Vent Panels 2
7 Bottom Cover 2
8 Panels 2
9 上蓋 1
10 下蓋(附腳墊) 1

Size Directions

RH-5U-320D尺寸圖

Product Specifications

Product Code Dimensions
U H1 (mm) H0 (mm) W1 (mm) W0 (mm) D1 (mm) D0 (mm)
RH-2U-□-B/P-F/H 2U 58 88 186 212 240,300 260, 320
RH-3U-□-B/P-F/H 3U 103 133 186 212 240,300 260, 320
RH-4U-□-B/P-F/H 4U 147 177 186 212 240,300 260,320
RH-5U-□-B/P-F/H 5U 192 222 186 212 240,300 260 , 320

U is the unit of height. 1U=44.45㎜ 前、後、底板加工尺寸=可用尺寸
B：底板 P：PCB固定鋁條 F：固定式面板 H：開啟式面板
(※標準儀器箱為底板式固定面板，訂貨範例：RS-2U-260-BF) 最大載重：15㎏

Optional Accessories

PVC鋁條組

PVC鋁條組

RH平掛耳

RH平掛耳

RH面板選配

RH面板選配

RH機箱

RH機箱

RH機箱上視圖

RH機箱上視圖

]]> https://www.radistar.com.tw/en/products/rh/feed/ 0 RF https://www.radistar.com.tw/en/products/rf/ https://www.radistar.com.tw/en/products/rf/#respond Thu, 19 Oct 2023 03:20:36 +0000 https://www.radistar.com.tw/?p=1628
RF機箱
Click to enlarge

Key Features:

  • Stable, Rugged Construction & Bolted Design.
  • Multiple Choice of Fixed Front Panel, Hinged Front Door w/o PCB Brackets or Hinged Front Door w/PCB Brackets.
  • Side Panels, Ventilated.
  • Strong Construction Light Weight Using All Aluminum Components.
  • Suitable for Desk Top or Rack Mountable.
  • Can be Used with or without Rack Mounting Brackets.
  • Includes top, bottom, sides, clip ears into face plate & handles.

File Download

pdf-icon-2

Instrument Cases RF Series

Materials

Aluminum

Finish

Rugged Black Coating

Applications Included

  • ISP/ ASP Web Server
  • E-mail, News or DNS Server
  • Internet Cache Server
  • Gateway Monitoring Unit

Standerd Accessories

  • Rackmounting Bracket
  • Fixed Front Panel
  • Rear Panel
  • Top Cover
  • Base Plate
  • Side Vent Panels
  • Bottom Cover
  • Clipers into Face Plate

PARTS LIST

RF
ITEM NO DESCRIPTION QTY
1 固定式面板 1
2 背板 1
3 底板 1
4 前端飾條 2
5 壓鑄鋅合金把手 2
6 掛耳 2
7 外側板 2
8 內側板&側邊飾條 2
9 上蓋 1
10 下蓋 1

Size Directions

RF-5U-560-尺寸

Product Specifications

Product Code Dimensions
U H1 (mm) H0 (mm) W1 (mm) W0 (mm) D1 (mm) D0 (mm)
RF-2U-□-B/P-F/H 2U 58 88 402 425 240, 300, 400 260,320,420
RF-3U-□-B/P-F/H 3U 103 133 402 425 240, 300, 400 260,320,420
RF-4U-□-B/P-F/H 4U 147 177 402 425 240,300,400,540 260,320,420,560
RF-5U-□-B/P-F/H 5U 192 222 402 425 240,300,400,540 260,320,420,560

U is the unit of height. 1U=44.45㎜ 前、後、底板加工尺寸=可用尺寸
B：底板 P：PCB固定鋁條 F：固定式面板 H：開啟式面板
(※標準儀器箱為底板式固定面板，訂貨範例：RF-2U-260-BF) 最大載重：30㎏

Optional Accessories

PVC鋁條組

PVC鋁條組

RF平掛耳

RF平掛耳

RF面板選配

RF面板選配

RF機箱上視圖

RF機箱上視圖

]]> https://www.radistar.com.tw/en/products/rf/feed/ 0 RS https://www.radistar.com.tw/en/products/rs/ https://www.radistar.com.tw/en/products/rs/#respond Thu, 19 Oct 2023 03:19:29 +0000 https://www.radistar.com.tw/?p=1626
RS機箱
Click to enlarge

Key Features:

  • Easy Assembly & Disassembly Construction & Bolted Design.
  • Multiple Choice of Fixed Front Panel, Hinged Front Door w/o PCB Brackets or Hinged Front Door w/PCB Brackets.
  • Side Panels, Ventilated.
  • Suitable for Desk Top or Rack Mountable.
  • Includes top, bottom, sides, clip ears into face plate & handles.

File Download

pdf-icon-2

Instrument Cases RS Series

Materials

Aluminum

Finish

Rugged Black Coating

Applications Included

  • ISP/ ASP Web Server
  • E-mail, News or DNS Server
  • Internet Cache Server
  • Gateway Monitoring Unit
  • Test & Measurement Station

Standerd Accessories

  • Rackmounting Bracket
  • Fixed Front Panel
  • Rear Panel
  • Top Cover
  • Base Plate
  • Side Vent Panels
  • Bottom Cover

PARTS LIST

RS
ITEM NO DESCRIPTION QTY
1 固定式面板 1
2 背板 1
3 上下蓋 2
4 前端飾條 2
5 側邊飾條 4
6 掛耳 2
7 底板 1
8 側板 2
9 把手組 2

Size Directions

RS-5U-560-BF尺寸

Product Specifications

Product Code Dimensions
U H1 (mm) H0 (mm) W1 (mm) W0 (mm) D1 (mm) D0 (mm)
RS-2U-□-B/P-F/H 2U 54 88 402 431 238, 338, 438 260, 360, 460
RS-3U-□-B/P-F/H 3U 99 133 402 431 238, 338, 438 260, 360, 460
RS-4U-□-B/P-F/H 4U 143 177 402 431 238, 338, 438, 538 260, 360, 460, 560
RS-5U-□-B/P-F/H 5U 188 222 402 431 238, 338, 438 ,538 260, 360, 460,560
RS-6U-□-B/P-F/H 6U 232 266 402 431 238, 338, 438, 538, 260, 360, 460 , 560
RS-7U-□-B/P-F/H 7U 277 311 402 431 238, 338, 438,538, 260, 360, 460 , 560
RS-8U-□-B/P-F/H 8U 321 355 402 431 238, 338, 438,538, 260, 360, 460,560

* Customization is available.

Optional Accessories

PVC鋁條組

PVC鋁條組

RS面板選購

RS面板選配

RS機箱上視圖

RS機箱上視圖
